Illinois Photo Thread -New Additions Weekly

#1 Post by Dave » Thu Jan 24, 2013 7:04 pm

The pictures below can assist you in identiftying your Illinois watch. For complete information on identifying wristwatch models and background information on each, please obtain a copy of Fred Friedberg's NEW BOOK, Sequel to, THE ILLINOIS WATCH: THE LIFE AND TIMES OF A GREAT AMERICAN WATCH COMPANY. NEW LIMITED EDITION SIGNED Books may be PRE-ORDERED from Fred at http://www.Illinoiswatches.com.

This Photo thread is a work in progress. I add NEW photos weekly. Alternately, if you have additional questions about your new found watch, JOIN THE FORUM AND ASK US ABOUT IT, you will get more information from the many Illinois collectors here.

This thread is locked so any discussion or questions should be posted in the regular Illinois Watch forum.

Any model names that are in blue text are links back to model specific threads with much greater detail.

If your example has a model number in the case back, it may save time to look for model names here before scrolling through the entire photo thread.
Models by Case Number

New Yorker/5th Avenue (1929) 14k GF, 6/0, 17j Grade 507, Model No. 162, Wadsworth, called Manhattan with a bracelet.

Enamel New Yorker also Model No. 162 (extremely rare)

Ace (1920) 3/0, Star WCC, also known as Wayne and Maxine


Admiral Benson (Gun Metal Finish)

Admiral Benson (Sterling)

Admiral Series-Swivel Lug (special case by Wadsworth very rare)

Admiral Evans (1920) Sterling, 3/0 11j, 17j, Fahys, Solidarity, Elgin and Illinois Watch Case co.

Admiral Evans Off-Center Crown

Andover (1932) 12/0 Model No. 215

Ardsley (1931) 14k gold filled, 12/0 Cal 207, Model No. 218, Wadsworth

Arlington (1932) 6/0 Model No. 618, also known as Hawthorne

Atlantic (1926) 3/0

Atlantic "Masterbilt" Dial/Atlantic "Captain" Dial

Atlantic Enamel (1926) 3/0[/url]

Atlantic Plus/Large

Bank Timer (Mosler Safe Co. Hamilton, Ohio)



Baronet (1930) 6/0 Models No. 220 & 625


Barrel (1926) 6/0, also called Whippet and Tonneau

Beau, 16mm strap
[Image

Beau Brummel (1928) 14k GF, 6/0, Special Model C, 17 jewels, Fahys, 16mm strap
Beau Royale (1929)14k GF, 6/0, Special Model C, 21 jewels, Fahys, 16mm strap

Beau Geste (1931) 6/0, Model No. 212, 17 jewels, Keystone, 16mm strap
Beau Monde (1931) 6/0, Model No. 212, 21 jewels, Keystone, 16mm strap

Rare Beau Braille with hinged Bezel

Beau Viking (1929) 14k GF, Special Model C, 6/0, Fahys, 16mm strap

Biltmore (1931) 14k GF, 6/0 Cal. 605 15J, Model No. 616, Keystone -Also called Commodore. With a bracelet, is called Bostonian

Biltmore (1930) 14K gold filled, 18/0 Cal 807A, Model No. 161, Wadsworth, 16mm strap

Blackhawk (1931) 3/0

Blackhawk (Aluminum Prototype)

Blackstone (1930)[/url] 14k gold filled, 6/0, Model No. 219, Wadsworth

Bostonian (1931) 14k GF, 6/0 Cal. 605 15J, Model No. 616, Keystone -same as a Commodore and Biltmore (1931) but Bostonian has a bracelet

Bryce (1923) 6/0 - Tank w/o sub-seconds

Burlington
Burlington Special

Canby (1923) 14K solid gold, 14K gold filled, Sterling, 6/0 15j, Wadsworth, Philadelphia WCC, Star WCC, 16mm strap, also called Rectangular

Rare Diamond Bezel
Rare Pinstripe Dial
Rare Black Dial

Caprice

Cavalier (1930) 14k gold filled, Cal. 607, 6/0, Model No. 209, Fahys

Chatham (1934) 10k gold filled, 6/0, Model No. 652, Keystone



Chesterfield (1929) 12/0, Model No. 196
, Wadsworth



Chesterfield Stepped Bezel (1929) 12/0, Model No. 196
, Wadsworth

Chevalier (1928) 3/0 & 6/0

Chieftain (1929) 6/0, Special Model No. 163, 14k gold filled, Fahys, 16mm
Rare Custom Dial

Commodore 14k GF, 6/0 Cal. 605 15J, Model No. 616, Keystone -is a Biltmore (1931) or Bostonian when fitted with a bracelet

Consul (1929) 14k solid gold (white, yellow, green, 2-tone), 6/0 17j, 19jor 21j, Special Model 152, Solidarity

Cushion (1926) 6/0, Scepter

Cushion (Special Meritime Dial)
Derby (1931) 10k gold filled, 6/0, Model No. 617, Wadsworth, Solidarity (extraordinarily rare), also called Pimlico

Cut Bezel (Cushion is hardest to find)

Ensign (1929) 14k gold filled, 6/0, Special Model B -called Kingston with sub@6, Fahys, 16mm strap

Finalist (1929) 12/0, Model No. 196, Wadsworth

Finalist Deco (1930) 12/0, Model No. 196, Wadsworth

The Rarest of them all: YG Finalist Deco (Solid Gold)

Frontenac (1930) 14k gold filled, 12/0 Cal. 207, 17j Wadsworth, Model No. 202 -With integrated bracelet. Similar case to Westchester (lugs and bracelet) and Trophy (strap)


Futura (1929) 14k GF, 12/0 Cal 207, Model No. 197, Keystone, 16mm lugs

User avatar
Dave
Posts: 3407
Joined: Mon Sep 12, 2011 12:54 pm
Location: Windsor

Re: Illinois Photo Thread.

#2 Post by Dave » Thu May 16, 2013 1:15 pm

Galahad/Kenilworth (1930) 12/0, Model No. 217

Greyhound (1930) 6/0, Model No. 211, see also Off Duty

Guardian (1929) 14k gold filled, Cal. 307, 3/0, Model No. 178 -Same case as Speedway

Guardsman (1929) 14k GF, 3/0 Cal 307, Model No. 170 & 171, Keystone

Hallmark

Hawthorne (1932) 6/0, Model No. 618, also known as Arlington

Hudson (1931) 12/0, Model No. 218

Illinois Central

Jolly Roger (1929) 14k GF, 3/0 Cal 307, 17 jewels, Model No. 176, Keystone, male lugs

Kenilworth/Galahad (1930) 14k gold filled, 12/0 Cal 207, Model No. 217, Keystone, 16mm strap

Khaki (Depollier)

Kingston (1929) 6/0 Special Model B -Is an Ensign with sub@6

Larchmont (1932) 6/0, Model No. 214, also called Richmond and Vernon

Locke (1925) 6/0, Grade 307, Star, Illinois WCC
Click link for case variations
Engraved Locke style case with rotor secometer

Major (1928) 14k gold filled, 3/0 17j, Model No. 170 & 171, Keystone, 16mm strap

Manhattan (1929) 14k GF, 6/0, 17j Grade 507, Model No. 162, Wadsworth -Is a New Yorker when without a bracelet.

Marquis (1928) 14k GF, 6/0 Special Model, Fahys, 16mm lugs

Mate (1928) 14k gold filled, 17j, 3/0 Special Model H, Fahys
An Amazing Original Mate w/box and papers (Member: Jim/mrtoad)

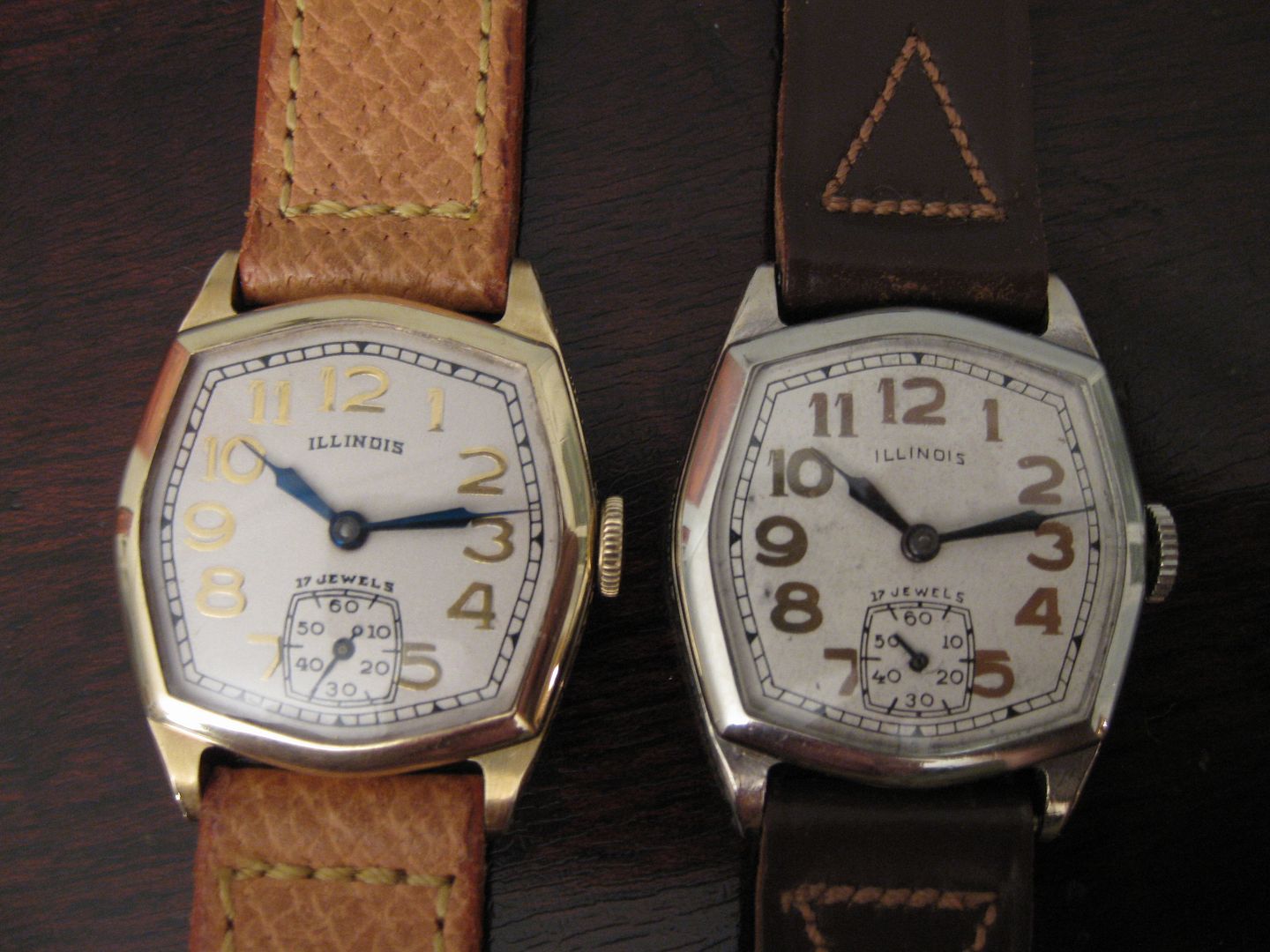

Mate conpared to Ensign (right)

Masonic Dials

Maxine (1920) 3/0, also known as Ace and Wayne

Medalist (1930) 14k GF, 12/0 Cal 207, Special Model 193, also known as Wembley, Fahys, 16mm lugs

Metropolitan (1932) 6/0, Model No. 198

Military Guardsman

New Yorker (1929) 14k GF, 6/0, 17j Grade 507, Model No. 162, Wadsworth, 16mm, also known as 5th Avenue, called Manhattan with a bracelet.

New Yorker Enamel (1929) 6/0, 17j Grade 507, Model No. 162

No. 250 (1931) 12/0

No. 650 (1932) 6/0

Off Center Crown

Off Duty (1932) 3/0, Model No. 211

Penn Special

Piccadilly (1929), 14k GF, 17J, Model No. 164, Keystone, 16mm male lug
Rare Engraved Bezel

Pimlico (1931) 6/0, Model No. 617, also called Derby

Police Special

Potomac (1932) 6/0, Model No. 626, also called Rockingham

Prince - see Atlantic


Rectangular (1923) 14K solid gold, 14K gold filled, Sterling, 6/0 15j, Wadsworth, Philadelphia WCC, 16mm strap, also called Canby

User avatar
Dave
Posts: 3407
Joined: Mon Sep 12, 2011 12:54 pm
Location: Windsor

Re: Illinois Photo Thread.

#3 Post by Dave » Thu May 16, 2013 1:15 pm

Richmond (1932) 12/0 , Model No.214, also called Larchmont and Vernon

Riley (1926) - see Atlantic


Ritz (1928) 14k GF, 6/0 Cal 607 17J, Model No. 210, Wadsworth, 16mm lugs

Rockcliffe (1930) 14k gold, Cal 207, 12/0, Model No. 216, Keystone
Rockcliffe (1934) 14k gold, Cal. 805, 807, 18/0, Model No. 216, Keystone

Rockingham (1932) 6/0, Model No. 626, also called Potomac

Sangamon (1934) 18/0, Model No. 875 Keystone

Skyway (1930) 6/0, Model No. 211

Southampton (1926) 6/0

Special (1930) - see Marquis
Special Model 152 - see Consul
Special Model 193 - see Medalist or Wembley
Special Model B - see Ensign or Kingston
Special Model C - see Beau Brummel-Beau Royale
Special Model H - see Mate

Speedway (1929) 14k gold filled, Cal. 307, 3/0, Model 178, Keystone, -Same case as Guardian

Speedway 178 Flag Bezel (1929), Model No. 178

Sportsman

Square (1920) 14k GF, 6/0, Fahys, Star
Custom Dial


Square Cut Corner (1923) 6/0


Square Cut Corner Large (1928) 6/0
Rare Braille model with hinged Bezel

Square Cut Corner in Solid Gold (21J)

Sterling (1928) 3/0

Tank (1923) 6/0 -Bryce with sub-seconds

Telephone

Super Rare Telephone YG Subs at 9

Tonneau (1926) 6/0, also called Barrel and Whippet

Townsman (1931) 14k gold filled, 6/0 Cal. 607, Model No. 198, Keystone

Trophy (1930) 14k gold filled, 12/0 Cal 207, 17j, Model No. 202, Wadsworth -With strap. Similar case to Westchester (lugs and normal bracelet) and Frontenac (integrated bracelet).

Tuxedo (1929)

Urbana (1934) 12/0, Model No. 197

Valedictorian - Ritz with a metal bracelet

Vernon (1932) 12/0, Model No. 214, also called Larchmont and Richmond

Viking (1928) 6/0, Special Model C, see also Beau Viking

Viking (1929) 14k w/y gold filled, Cal 307 3/0, Model No. 195, Fahys, 16mm strap

Viking "Custom Dial" (1928)

Washington Watch Co. (Private Label) (1915)

Wayne, also known as Ace and Maxine

Wembley (1930) 14k GF, 12/0 Cal. 207, Special Model 193, also known as Medalist, Fahys, 16mm lugs

Wentworth (1932) 14k GF, 12/0 Cal 207, Model No. 197, Keystone

Westchester (1930) 14k gold filled, 12/0 Cal 207, 17j, Model No. 202, Wadsworth -With lugs and normal bracelet. Same case as Frontenac (strap) and Trophy (integrated bracelet)

Whippet (1926) 6/0, also called Barrel and Tonneau

Yorktown (1931) 6/0, Model No. 132
